Jazzy Carbon HD

Weighing just 32 lbs. and boasting a 400-lb. weight capacity, the Jazzy Carbon HD is a game-changing heavy-duty travel power wheelchair. It folds and locks into position in mere seconds and will keep you comfortable with a padded seat back and extra-wide foot platform.

This product is a FDA Class II Medical Device designed to aid individuals with mobility impairments.

Heavy-duty mobility meets lightweight mobility.

The wait is over for a travel friendly, heavy-duty, power wheelchair built for portability. The Jazzy® Carbon HD offers a 400-lb. weight capacity, weighs 32.2 lbs. without the battery, has a durable carbon fiber frame, and gives you a greater level of independence throughout your travels.

Easy to fold, easy to lift, easy to transport.

The Jazzy® Carbon HD folds in just a few seconds and locks securely into position. It is also one of the lightest models in the Pride® Mobility fleet and engineered for convenient storage and transport. When it comes time to ride again, it is just as easy to unfold and go.

Your comfort is paramount.

The roomy 20 x 20” seat, adjustable padded seat back, removable cushion, and extra-wide adjustable foot platform are designed for your comfort. It also has front and rear suspension providing a smooth ride over varied terrain. Jazzy® is known for world-class quality, a commitment to the industry’s most rigorous testing standards, and proven performance over three decades. You will get all of that with the Jazzy® Carbon HD! Travel worry-free and experience the best in lightweight portability!

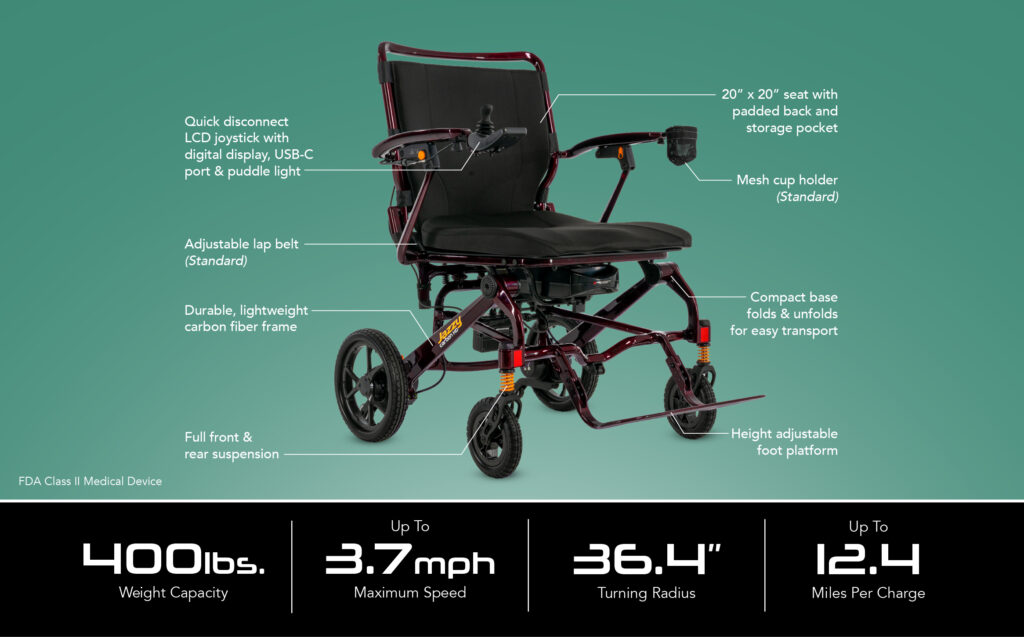

Jazzy® Carbon HD Features:

    • Unit weighs 32.2 lbs. without the battery
    • 400-lb. weight capacity
    • Durable carbon fiber frame
    • Front and rear suspension
    • Top speed of up to 3.7 mph
    • Battery range of up to 12.4 miles
    • 20″ x 20″ seat
    • Easy fold design that locks into folded position
    • Folded dimensions: 31.3” L x 26.4” W x 13 H
    • Flip up lightweight carbon fiber arms
    • Padded seat back with removable cushion
    • Extra-wide adjustable foot platform 17.25” W x 5.9” D
    • 20 Ah lithium battery (standard)
    • Storage pocket on back of seat
    • Quick disconnect LCD joystick with digital display, USB-C port & puddle light
    • Mesh cup holder, cushion, and adjustable lap belt, (standard)

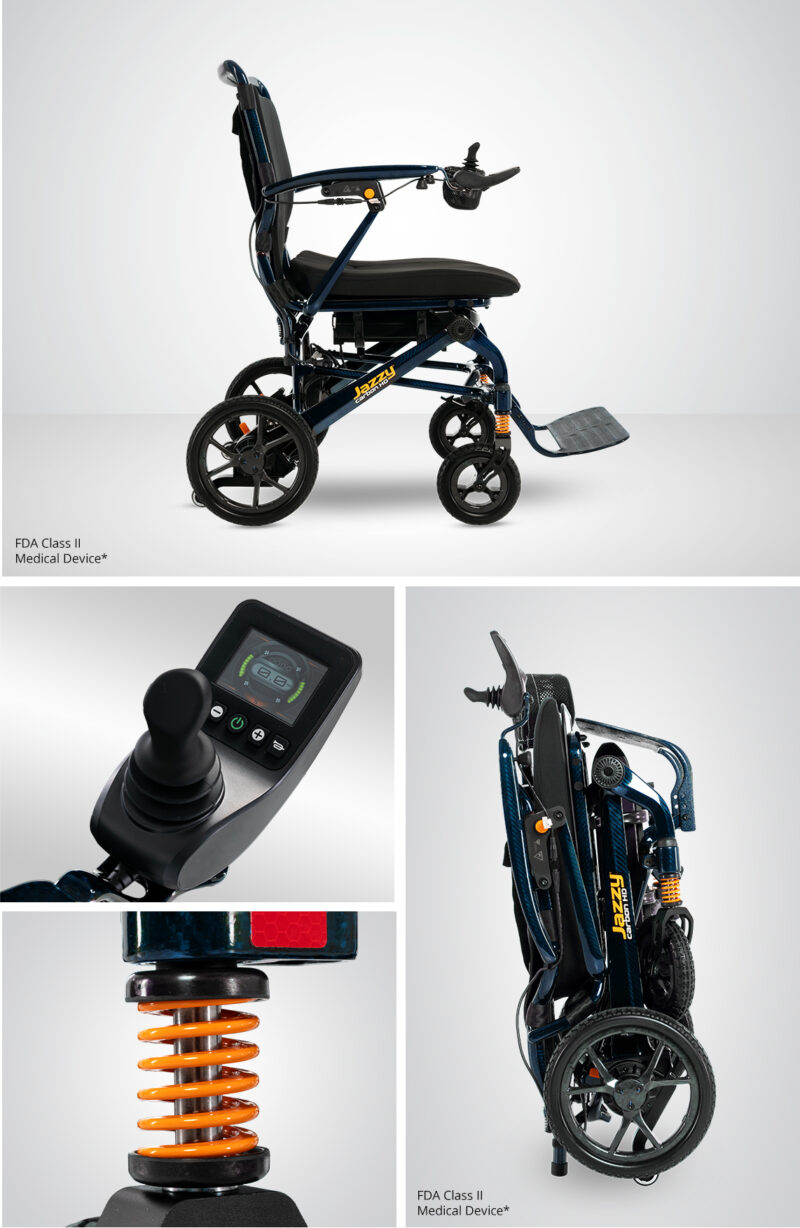

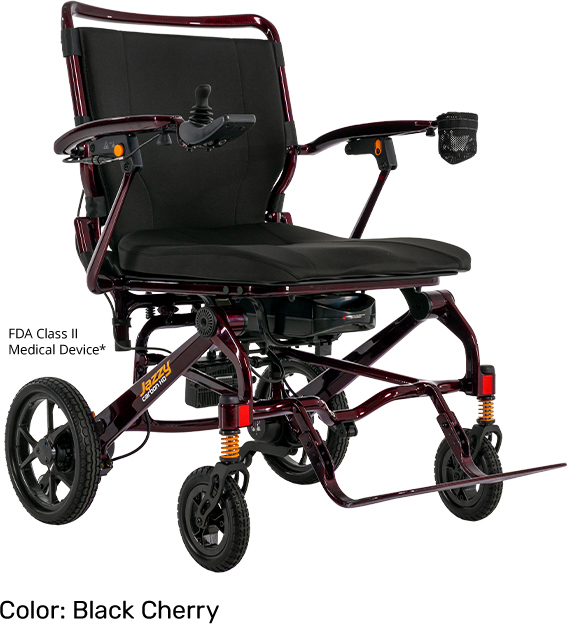

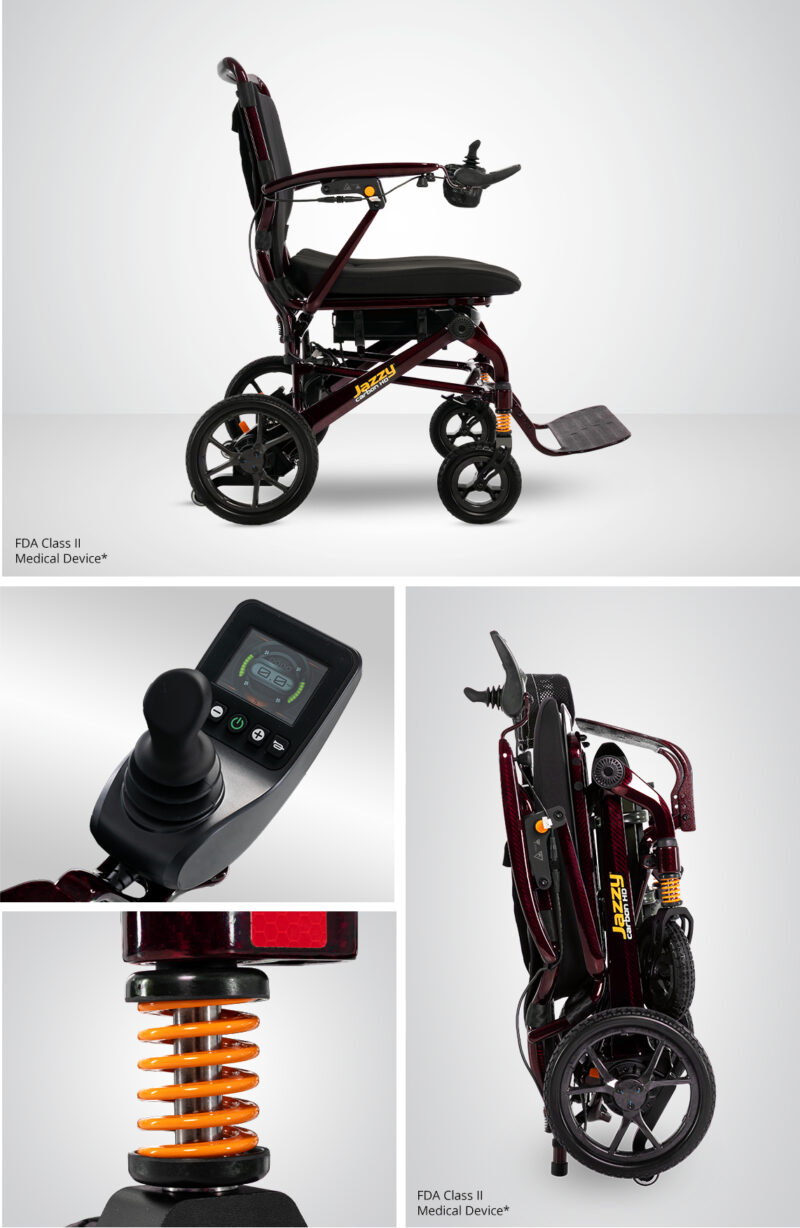

    • Available Colors: Black Cherry, Night Sky

*This product is an FDA Class II Medical Device designed to aid individuals with mobility impairments.

Jazzy Carbon HD Colors:

CATEGORY SPECIFICATION
Model
Jazzy® Carbon HD
Weight Capacity 400 lbs.
Maximum Speed1 Up to 3.7 mph
Ground Clearance3 1″ at motor
Turning Radius3 36.4″
Overall Length3 36.81″
Overall Width3 26.4″
Suspension Full Front and Rear Suspension
Front Wheels 6.5″
Rear Wheels 10.6″
Range per Charge1,2 Up to 12.4 Miles per charge
Product Weight Without Batteries3,5 32.2 lbs. without batteries
Standard Seating3 Dimensions: 20″ x 20″ seat
Seat sling with removable cushion
Folded Dimensions 31.3″ L x 26.4″ W x 13″ H
Drivetrain/Motor Output 24V 250W Brushless motors
Braking System Regenerative and electromechanical
Battery Requirements Type: Lithium battery box
Size 20 Ah
Battery Weight4 7.5 lbs.
Battery Charger 2 Amp
Warranty Frame: 5-year
Electronics: 1-year limited
Drivetrain: 1-year limited
Battery: 1-year limited
Notes:
1 Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition, and tire condition.
This specification can be subject to a variance of (+ or -) 10%.2 Tested in accordance with ANSI/RESNA, MC Vol2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity.
3 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of (+ or -) 3%.
4 Battery weight may vary based on battery manufacturer.
5 Includes standard seat weight.
Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments.
All specifications subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of + or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections.

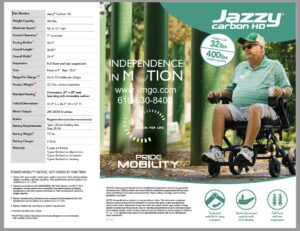

For Complete Specifications, please see Jazzy Carbon HD Brochure
